A Deep Dive into RTD Sensors: Structure, Principles, and Applications

Embedded Systems

Resistance Temperature Detectors (RTDs) are essential tools for measuring temperature in environments where precision is critical. Known for their accuracy and reliability, RTDs are widely used in industries ranging from food processing to chemical manufacturing.

In this comprehensive guide, we’ll explore the structure, working principles, and applications of RTD sensors, helping you understand why they’re a top choice for temperature measurement.

1. What Are RTD Sensors?

RTD sensors, short for Resistance Temperature Detectors, measure temperature by correlating resistance changes in a material (typically platinum, nickel, or copper) with temperature variations.

Key Features:

  • High Accuracy: RTDs are known for their precise measurements.

  • Wide Range: Suitable for temperatures from -200°C to 850°C.

  • Durability: Can withstand harsh environments with proper casing.

2. Types of RTD Sensors

2.1. By Material

  • Platinum (Pt):

    • Most common and accurate.

    • Highly stable with near-linear resistance changes.

    • Examples: Pt100 (100Ω at 0°C), Pt500, Pt1000.

  • Nickel (Ni):

    • Less expensive than platinum.

    • Good durability but limited temperature range.

    • Examples: Ni100, Ni500.

2.2. By Wiring Configuration

  • 2-Wire RTD:

    • Simplest design.

    • Least accurate due to lead resistance interference.

  • 3-Wire RTD:

    • Most common configuration.

    • Compensates for lead resistance, improving accuracy.

  • 4-Wire RTD:

    • Eliminates lead resistance entirely.

    • Ideal for high-precision measurements.

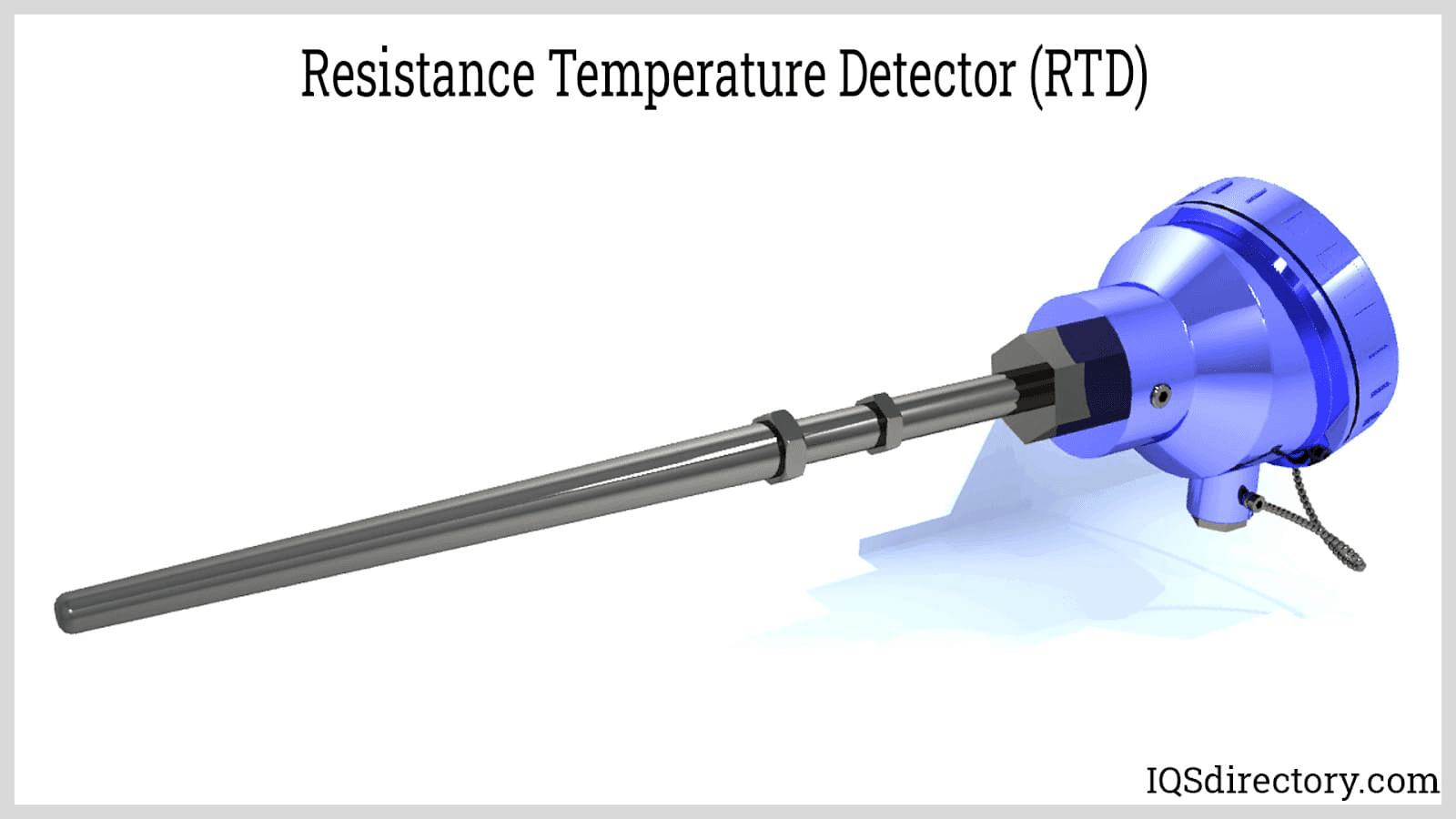

3. Structure of RTD Sensors

RTD sensors consist of the following components:

  1. Sensing Element:

    • A thin wire or film made from platinum, nickel, or copper.

    • Configured in a coiled or serpentine pattern.

  2. Insulation:

    • Made from ceramic or glass to prevent electrical interference.

  3. Filling Material:

    • Fine alumina powder fills gaps, protecting the sensor from mechanical shocks.

  4. Protective Sheath:

    • Usually made from stainless steel (e.g., 304 or 316L) to safeguard against corrosion or harsh environments.

  5. Connection Head:

    • Ensures secure wiring to external circuits, often insulated for safety.

4. How RTD Sensors Work

RTD sensors operate on the principle of resistance-temperature correlation.

  • As temperature increases, the resistance of the sensing element rises.

  • The resistance is measured and converted into a temperature value using a predefined calibration curve (e.g., IEC 60751 for platinum RTDs).

Example:

  • At 0°C, the resistance of a Pt100 RTD is 100Ω.

  • At 100°C, the resistance rises to approximately 138.5Ω.

5. Advantages of RTD Sensors

  • Accuracy: Provides highly reliable temperature measurements.

  • Stability: Excellent long-term stability with minimal drift.

  • Versatility: Available in various forms to suit different applications.

6. Applications of RTD Sensors

RTDs are employed in diverse fields due to their precision and reliability:

  1. Industrial Processes:

    • Temperature control in chemical plants.

    • Monitoring steam lines and heat exchangers.

  2. Food and Beverage Industry:

    • Ensures safe cooking and storage temperatures.

  3. Medical Equipment:

    • Incorporated in devices like incubators and sterilizers.

  4. HVAC Systems:

    • Measures ambient temperature for climate control.

  5. Environmental Monitoring:

    • Tracks temperature in sensitive ecosystems or weather stations.

7. Choosing the Right RTD Sensor

To select the best RTD sensor, consider the following:

Measurement Requirements:

  • Ensure the RTD’s range covers your target temperatures.

Environmental Factors:

  • For corrosive environments, opt for a protective sheath made of stainless steel or other resistant materials.

Accuracy Needs:

  • Use 3-wire or 4-wire configurations for high-precision measurements.

Installation Type:

  • Choose threaded or flanged designs based on the application setup.

8. Comparison of RTD Wiring Configurations

ConfigurationAccuracyUse Case2-Wire RTDModerateBasic industrial tasks3-Wire RTDHighMost industrial setups4-Wire RTDVery HighLaboratories, calibration

Conclusion

RTD sensors are a cornerstone of modern temperature measurement, offering unmatched accuracy and versatility. Whether you’re optimizing industrial processes or ensuring safety in medical applications, understanding the types, structure, and working principles of RTDs will help you make informed decisions.

Have questions or experiences with RTD sensors? Let us know in the comments below!
