Mastering the Art of Motor Control: A Guide to Stepper Motors

Embedded Systems

Stepper motors are essential in applications requiring precise control over movement and positioning. From 3D printers to CNC machines, stepper motors are widely used in robotics and automation for their ability to deliver accurate and repeatable motion.

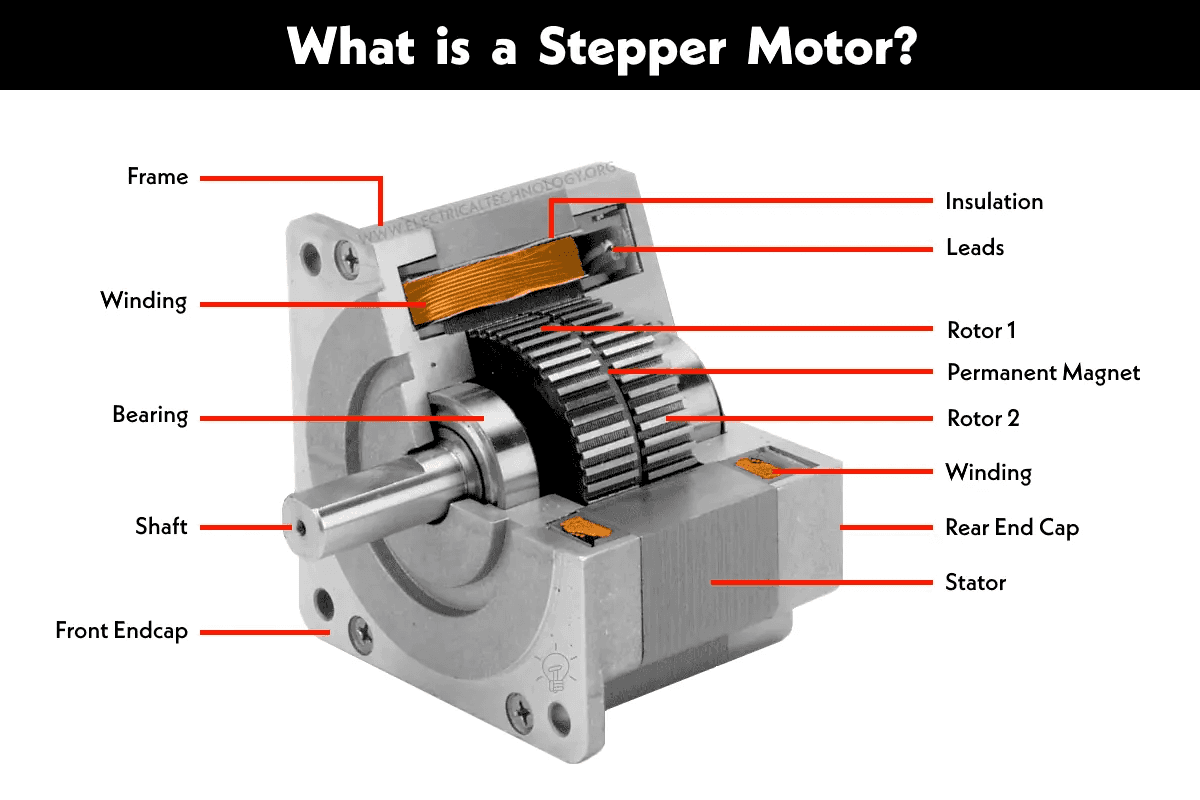

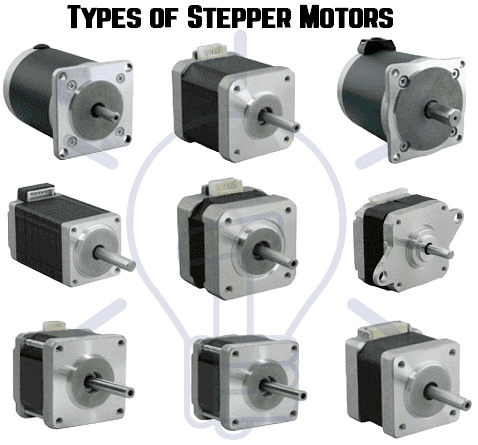

  1. What Are Stepper Motors?

A stepper motor is a type of brushless DC motor designed to divide a full rotation into a fixed number of steps. Each step represents a precise angular movement, making stepper motors ideal for applications requiring exact control over rotation and positioning.

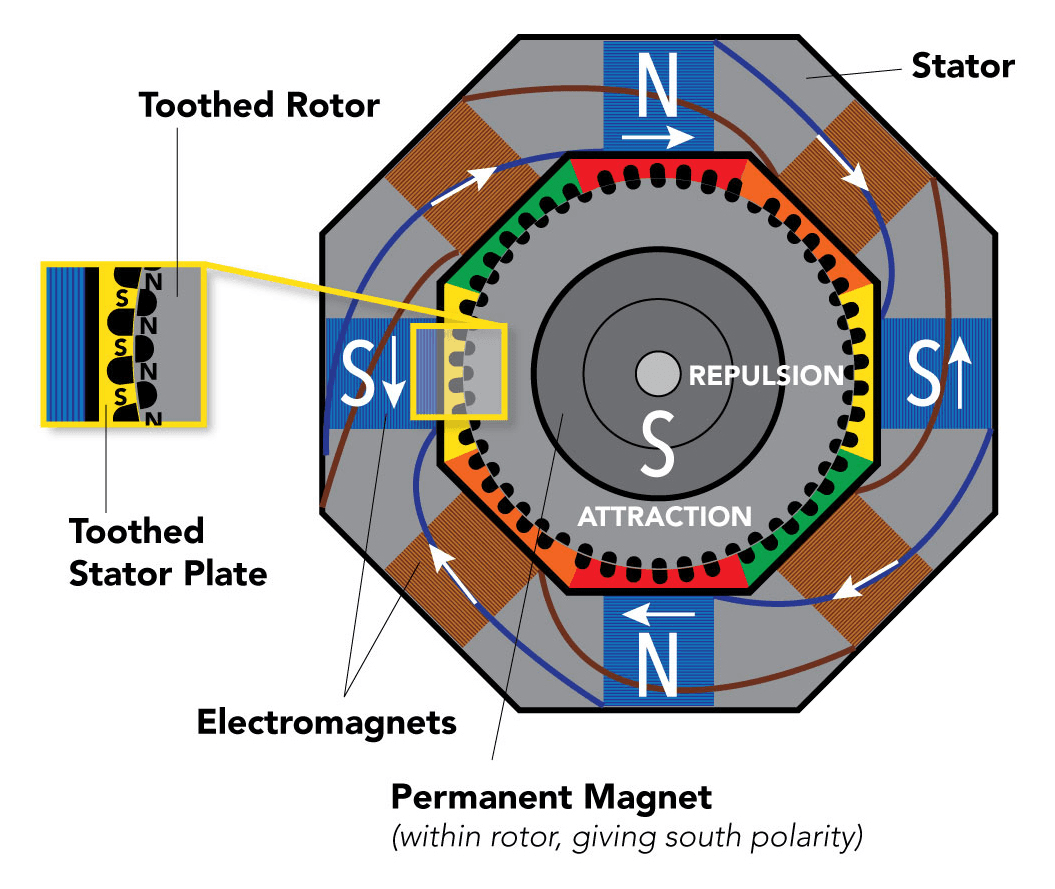

  1. How Do Stepper Motors Work?

Stepper motors operate by energizing coils in a specific sequence, which creates a magnetic field to rotate the motor's shaft in discrete steps. Here's how it works:

  1. Phases and Coils: The motor's stator contains coils arranged in phases.

  2. Magnetic Poles: The rotor (a permanent magnet or soft iron) aligns with the stator's magnetic field.

  3. Stepping: Energizing the coils in a sequence causes the rotor to "step" to the next position.

  4. Microstepping: Advanced control methods allow for smaller, smoother steps.

This stepping mechanism ensures the motor's position is always known, even without feedback systems like encoders.

  1. Common Applications of Stepper Motors

  • 3D Printers: Precise layer-by-layer control for creating detailed objects.

  • CNC Machines: Accurate cutting, milling, and engraving.

  • Robotics: Controlled motion for robotic arms and platforms.

  • Automated Camera Systems: Smooth panning and tilting for professional videography.

  • Medical Equipment: Syringe pumps and diagnostic machines.

  1. Pros and Cons of Stepper Motors

Pros:

  • Precise and repeatable positioning without feedback.

  • Simple control systems compared to servo motors.

  • Holds position without drifting when stationary.

  • Affordable and widely available.

Cons:

  • Limited torque at high speeds.

  • Can overheat during prolonged use.

  • Lacks feedback unless paired with an encoder.

  • Less efficient compared to servo motors.

  1. Choosing the Right Stepper Motor for Your Project

When selecting a stepper motor, consider these factors:

  1. Step Angle: A smaller step angle provides finer resolution and smoother motion.

  2. Holding Torque: Ensure the motor can handle the required load.

  3. Current and Voltage Ratings: Match your motor to the driver and power supply.

  4. Number of Phases: Most stepper motors are 2-phase, but 5-phase motors offer smoother performance.

  5. Environment: Choose a motor with appropriate housing for conditions like moisture or dust.

  6. References:

  • "Basics of Stepper Motors," Arduino.cc

  • "Stepper Motor Control and Applications," All About Circuits

  • Datasheets from NEMA 17 and NEMA 23 Stepper Motor Manufacturers
