A Comprehensive Guide to Ultrasonic Sensors in Robotics

Embedded Systems

Ultrasonic sensors are critical components in modern robotics, providing precise distance measurement and object detection capabilities. Their versatility and reliability make them essential for applications ranging from autonomous vehicles to industrial automation.

  1. What Are Ultrasonic Sensors?

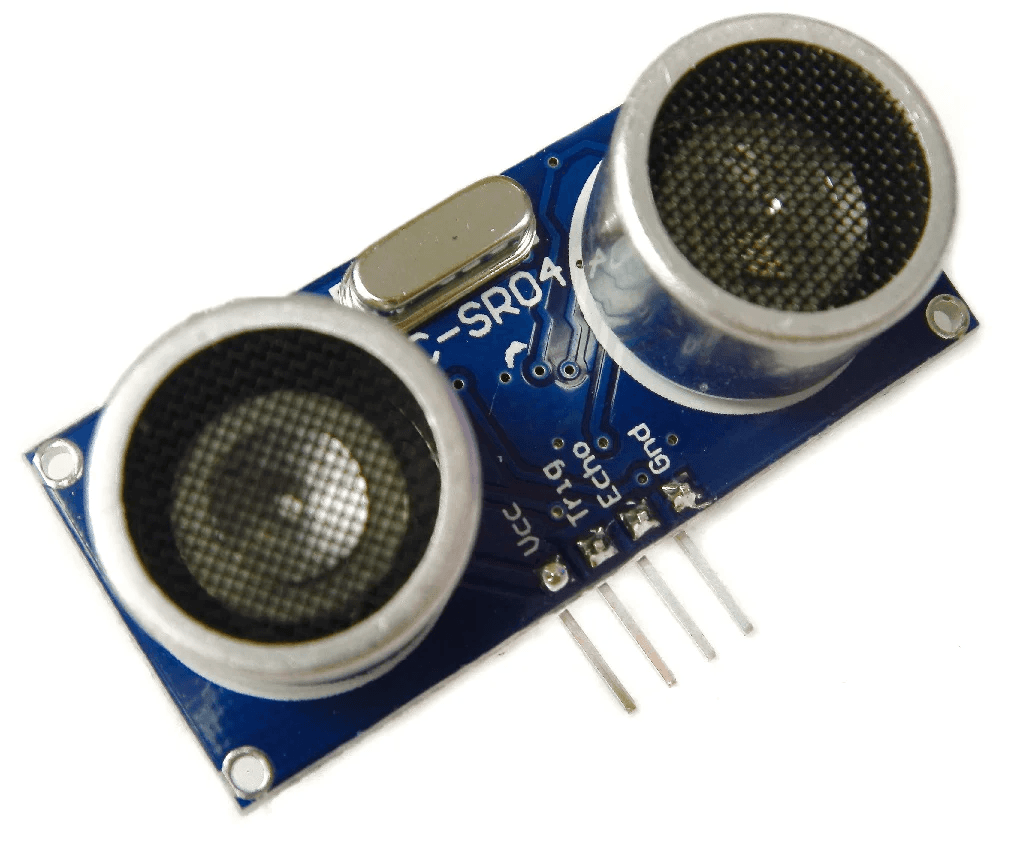

Ultrasonic sensors use high-frequency sound waves to detect objects and measure distances. These devices emit ultrasonic pulses, which bounce off objects and return to the sensor. By calculating the time taken for the sound to return, the sensor can determine the object's distance.

  1. How Do Ultrasonic Sensors Work?

  1. Emission of Sound Waves: The sensor emits sound waves at a frequency beyond human hearing (typically 40kHz).

  2. Reflection of Waves: These waves bounce off nearby objects.

  3. Reception of Echoes: The sensor detects the reflected waves.

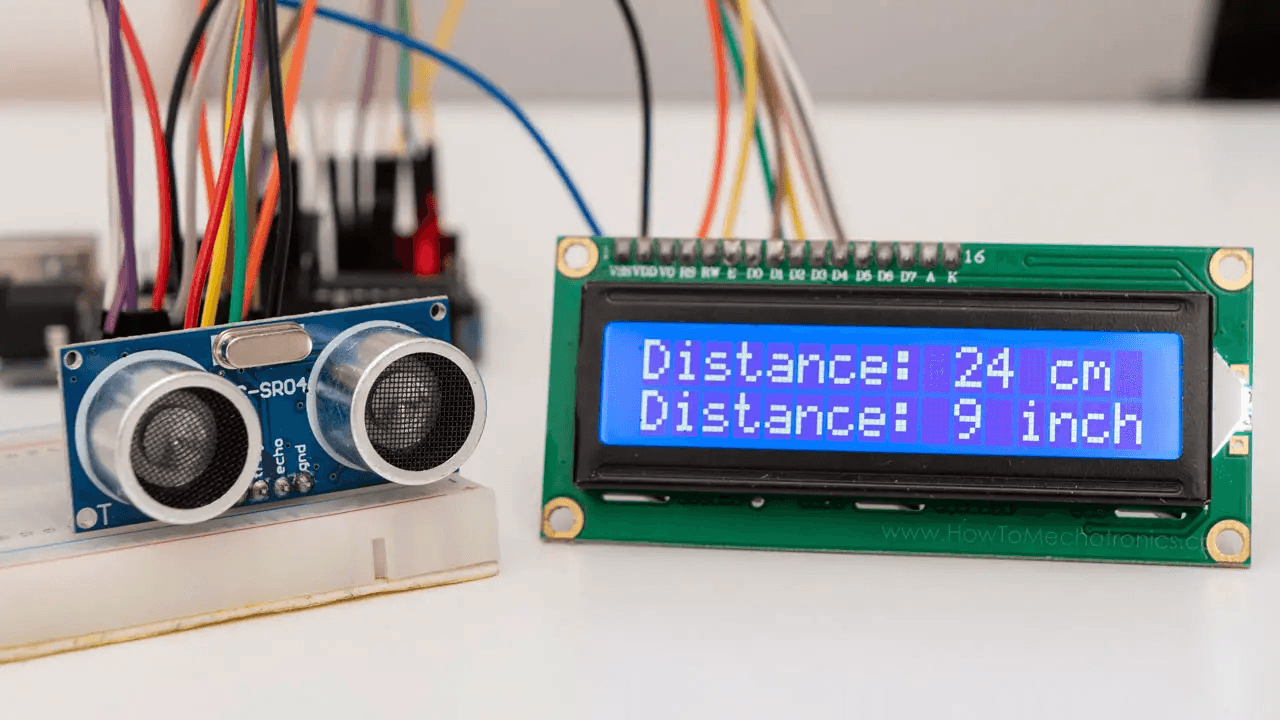

  4. Distance Calculation: The time taken for the echo to return is used to calculate the object's distance based on the speed of sound.

  1. Applications of Ultrasonic Sensors in Robotics

  • Obstacle Avoidance: Common in autonomous robots and drones.

  • Distance Measurement: Ideal for precise positioning in industrial automation.

  • Level Sensing: Used in tanks and containers to monitor liquid levels.

  • Object Detection: Useful in conveyor systems to detect misplaced items.

  1. Advantages of Ultrasonic Sensors

  • Accurate measurement regardless of object color or transparency.

  • Works effectively in low-light or dark environments.

  • Reliable performance in dusty or smoky conditions.

  1. Limitations of Ultrasonic Sensors

  • Limited range compared to LiDAR or optical sensors.

  • Ineffective for detecting soft materials that absorb sound.

  • Sensitivity to environmental factors like temperature changes.

  1. Choosing the Right Ultrasonic Sensor

When selecting an ultrasonic sensor for your project, consider the following:

  • Range: Ensure the sensor's range matches your application's needs.

  • Beam Angle: A narrower beam is ideal for focused detection, while a wider beam covers larger areas.

  • Environmental Conditions: Choose a sensor with appropriate housing for harsh environments.

  1. References:

  • "Introduction to Ultrasonic Sensors," SparkFun Electronics.

  • "The Science Behind Ultrasonic Sensors," Electronics Hub.

  • Official Datasheets from HC-SR04 Ultrasonic Sensor Manufacturers.
